Description
Features:
- Fully Welded Construction
- Compact, Economical Design
Applications:
- Viscous Media
- Clogging
- Corrosive Media
- High Temperature
Product Variation:
13000 Series

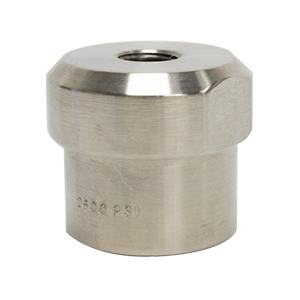

The Model 13000 Mini Welded Seal is designed for up to 3 1/2” bourdon tube gauges with aminimum range of 0-60 psi. The maximum operating pressure is 2,500 psi at 100˚F. Available inall 316 Stainless Steel or Hastelloy C process housing and diaphragm.
Download Spec Sheet & Literature
Additional information
| Diaphragm material | 316SS, Hastelloy C276, Custom (contact factory) |
|---|---|
| Options | Low Pressure, High Pressure |
| Design | Meets/Exceeds ASME B40.100 |
| Flush connection | None, 1/4" NPT |
| Pressure rating | 60-2500 psi, low pressure VAC-30 psi (contact factory), high pressure above 2500 psi (contact factory) |
| Series | 13000 Series |
| Instrument connection | 1/4", 1/2" Female NPT, Custom (contact factory) |
| System fill | Glycerine, Silicone, Syltherm, Halocarbon (Inert), Custom/Other (contact factory) |
| Process connection | 1/4", 1/2", 3/4" Female NPT, Custom(contact factory) |
| Lower housing material | 316SS, Hastelloy C276, Custom (contact factory) |
| Upper housing material | 316SS, Hastelloy C276, Custom (contact factory) |
| Bolts nuts | Fully Welded |
