Description
Features:
- Small diameter for use in positioner and low clearance applications
Applications:
- Valve Positioner/Actuator
- Industrial
- Commercial
- Hydraulic
- Pneumatic
- Oil & Gas
Product Variation:

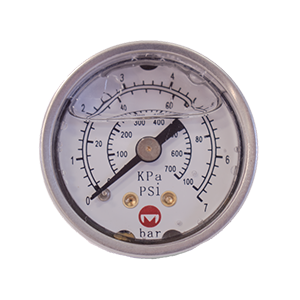

M Series Copper Alloy
Marsh Instruments Severe Service Liquid Filled Gauges are designed to perform in rugged and harsh environmental conditions, especially where pulsation or vibration is present. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and lubricating the internals.
View Spec Sheet
View Catalog
Fast Quote
Additional information
| Spec accuracy | 3/2/3% (ASME Grade B) |
|---|---|
| Bezel | 304 Stainless Steel – Fixed |
| Connection | 1/8 or 1/4 NPT |
| Design | Meets/Exceeds ASME B40.100 |
| Pointer | Aluminum, Black Painted |
| Mount | Center Back Mount |
| Accuracy | 3/2/3% (ASME Grade B) |
| Subtitle | Filled, Fillable – Severe Service |
| Series | M Series |
| Dial color | Black Markings on White |
| Dial size | 1.5", 2" |
| Pressure ranges | VAC/Compound to 3000 psi |
| Case | Stainless Steel |
| Standard case fill | Glycerine, Silicone, Dry |
| Window | Acrylic |
| Movement | Brass |
| Dial sizes | 1.5", 2" |
| Ambient temperature | Dry: -40 to 180F, Glycerine: 30 to 160F, Silicone: -40 to 180F |
| Internal material | Copper Alloy – Nickel Plated Socket |
| Tube socket | Copper Alloy with Nickel Plated Brass Socket |
| Standard scale | Triple Scale, psi/BAR/kPa |
| Weights | see variation page |
