Description
Features:
- 316 Stainless Steel Internals
- Liquid Filled for Dampening Effect
- Liquid Filled for Dampening Effect
- 2/1/2% Accuracy
Applications:
- Industrial
- Commercial
- Hydraulic
- Pneumatic
- Oil & Gas
Product Variation:

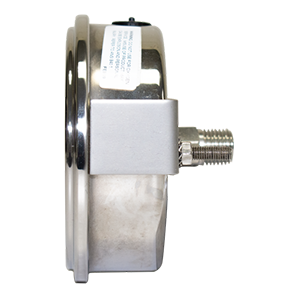

X Series Stainless Steel U-Clamp Panel Mount
Marsh Instruments Severe Service Liquid Filled Gauges are designed to perform in rugged and harsh environmental conditions, especially where pulsation or vibration is a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing flutter and lubricating the internals.
View Spec Sheet
View Catalog
Fast Quote
Additional information
| Spec accuracy | /- 2/1/2% (ASME Grade A) |
|---|---|
| Bezel | 304 Stainless Steel – Fixed |
| Connection | 1/4 NPT- Center Back Mount- U-Clamp |
| Design | Meets/Exceeds ASME B40.100 |
| Pointer | Aluminum, Black Painted |
| Mount | U-Clamp Panel Mount |
| Vent plug | Filler/Pressure Relief Plug |
| Accuracy | /- 2/1/2% (ASME Grade A) |
| Subtitle | Filled, Fillable – Severe Service |
| Series | X Series |
| Dial color | Black Markings on White |
| Dial size | 4" |
| Pressure ranges | VAC/Compound to 10,000 psi |
| Case | 304 Stainless Steel |
| Standard case fill | Dry, Glycerine, Silicone |
| Window | Polycarbonate |
| Movement | Stainless Steel |
| Dial sizes | 4" |
| Ambient temperature | Dry: -40 to 180F, Glycerine: 30 to 160F, Silicone: -40 to 180F |
| Internal material | 316 Stainless Steel |
| Tube socket | 316 Stainless Steel |
| Standard scale | Dual Scale psi/kpa |
| Weights | see variation page |
